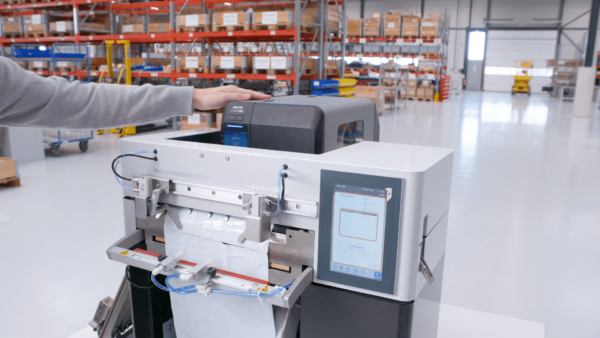

Rollbag® R985 Auto Bagger

Tabletop Automatic Bagger That Runs with Paper or Poly Material

Revolutionary Technology for Sustainable Packaging Solutions

Introducing the Rollbag R985 Tabletop Automatic Bagger – a cutting-edge bagging solution designed to keep your business ahead of future packaging regulations, ensuring that you remain compliant and future-proof you equipment investment.

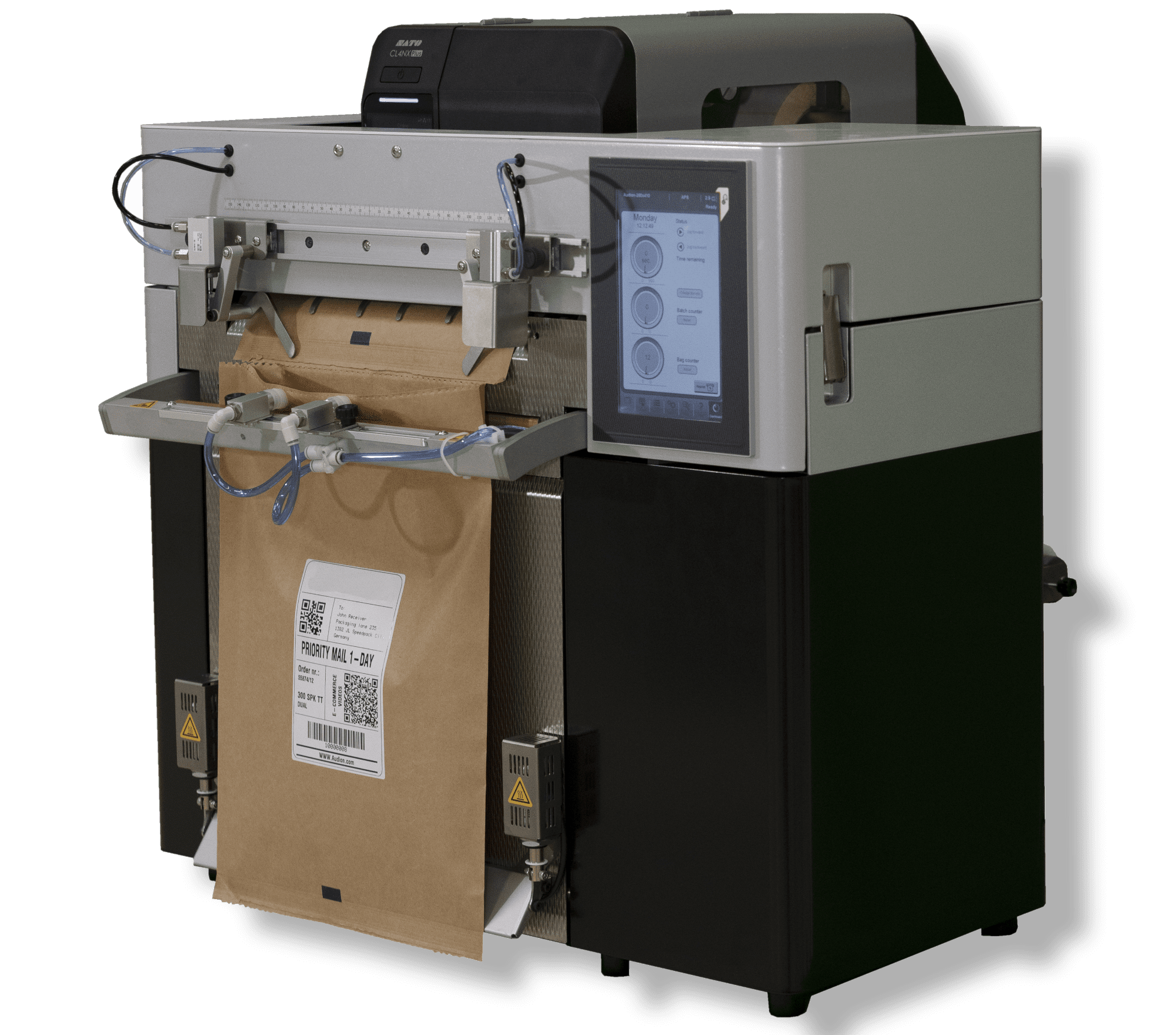

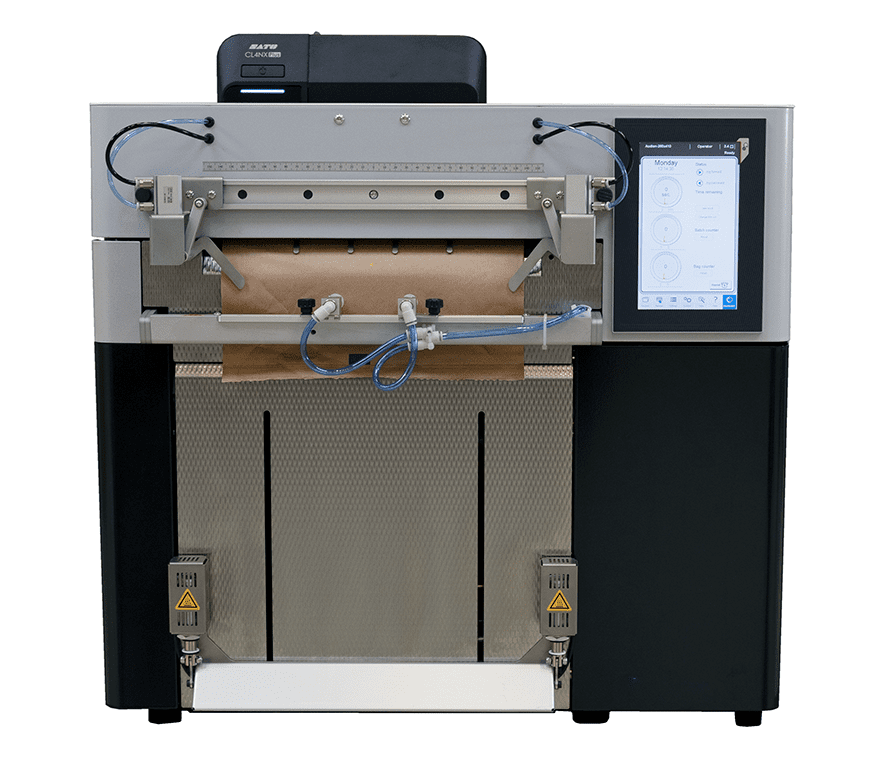

With the ability to seamlessly operate with both PAC’s Fiberflex pre-opened paper bags and Rollbag polyethylene (PE) pre-opened bags, the Rollbag R985 Tabletop bagger offers unmatched flexibility and sustainability. In a time where the industry is facing uncertain regulations on plastic packaging, this innovative machine guarantees that your operations will not only meet but exceed expectations.

Adapt to any changes in regulations while maintaining high efficiency and environmental responsibility. Stay ahead of the curve with this game-changing bagger innovation.


Read More

Videos

RESOURCES

Specifications

ModelRollbag R985 Auto Bagger
SpeedUp to 40/min (poly)
Up to 12/min (paper)
Bag MaterialPaper or Poly
Max bag width12" (poly)
11" (paper)
Max bag length20"
Max thickness5 mil (poly)
75 lb (paper)
Electrical120V, 7.5A, 50/60 Hz
Air80psi @ 5CFM
Warranty1 year,
extendable up to 3 years
Dimensions
(W x D x H)
26"W x 18"D x 24"H

Features

Operating Benefits

  • Operate with a footswitch, by hand, or in auto cycle mode
  • Adjustable height articulating load shelf to support the bag during packaging
  • Adjustable pressure bar opening (up to 4″), for increased packaging speed on small bags
  • Seal flattener fingers minimize wrinkles in the seal area by stretching the bag prior to selling

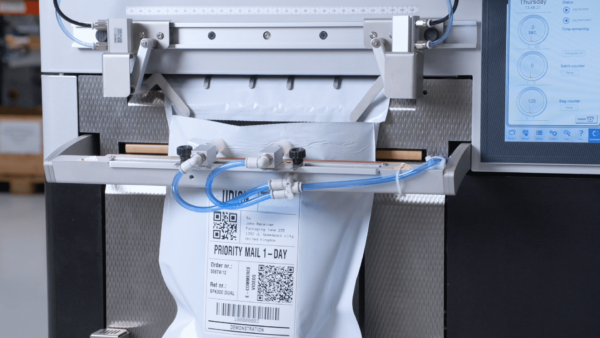

  • Vacuum grippers grab and hold the bag open during product loading

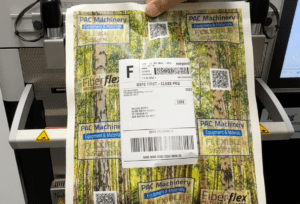

  • Print and apply a label, up to 4″ in width
  • Compact design takes up minimal footprint in the packaging area
  • 7” color touchscreen with user-friendly interface and clear prompts

Set-Up Benefits

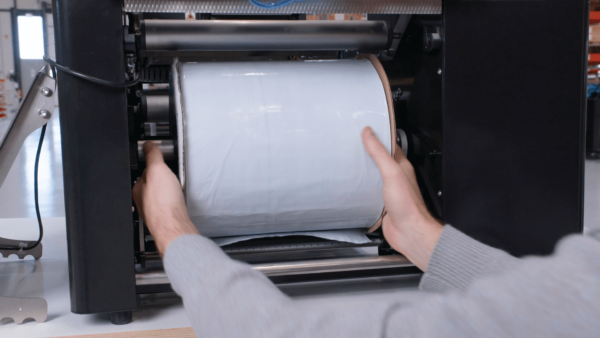

  • Utilizes pre-opened bags-on-a-roll or fan-folded in a box for quick bag size changes and easy set-up
  • PLC with job storage, batch counters, packaging statistics, and login-in levels
  • Interface to infeed devices for a fully automatic packaging system (optional)
  • Ceramic heating element for fast start-up

Maintenance Benefits

  • Off the shelf modular components for easy replacement
  • Remote networking capability for improved troubleshooting
  • Self-diagnostics ensure quick problem solving
  • Quick service access to all electrical components
  • Comprehensive 3-year warranty (optional)

Safety Benefits

  • Pressure bar stepper motor detects obstruction, virtually eliminating the chance of injury
  • Low power consumption design (less than 1,000 W)
  • CE compliant design for improved safety and troubleshooting

Options

Easy Touch Start Sensor—Magnetic Mount
A portable sensor that can be moved to the optimal location for the bagging process. This sensor detects the presence of the operator’s hand on the button and then the machine automatically cycles. This sensor eliminates a step in the packaging process, as the operator does not need to press a button or activate a foot switch to cycle the bagger.
1.5mm Wide Seal Bar
When strictly using polyethylene (PE) bags, then the optional 1.5mm (1/16") wide seal bar is a good choice over the standard 8mm (5/16") wide seal bar.
Air Expeller
This device presses against the bag prior to sealing, removing excess air as well as minimizing wrinkles in the seal with large bags. Ideal when there is no vent hole in the bag or when packing bulky items in poly mailers.
220V Wiring
For facilities that require 220V electrical instead of 120V.
Utility stand
Mount the auto bagger on this optional utility stand. Includes a convenient shelf extension so that the front plate of the machine can be rested on it while loading a roll of bags. The stand’s minimum height is 27.5” and provides a comfortable loading height for all operators and a greater range of adjustment for increased ergonomics.
Incline Outfeed Conveyor
Using the new motorized adjustable height stand, allows the user to also add PAC’s Motorized Conveyor (see options section). Bags drop down from the bagger onto the stainless conveyor that gets placed in front of the bagger. Products travel up the adjustable incline section which has a height of approximately 35”. Conveyor is available in 10″ & 16″ widths.
Motorized Height Adjustable Stand
Mount the auto bagger to this optional motorized height adjustable stand. Includes enough space to place rolls of bags. The stand is adjustable in height at the push of a button, making it comfortable for all operators, in a sitting or standing position. It features casters to easily move the machine around a production facility or warehouse. Stand goes from 22" to 34" high.

Additional Options

305 dpi Printhead Upgrade
Perfect when high-resolution printing is required.

Wi-Fi Kit
Upgrade kit that allows for a WLAN connection.

FBA Seller Package
Prep made easy with the label template and the equipment to add your label information for each bag to be labeled and sealed (includes barcode scanner, keyboard, and 2″ x 2″ label template).

Extended Length Bag Support
Designed to support bags longer than 15″

Bag Open Sensor
Detects if a bag is in the load position, open, and ready to accept product. Designed for automatic packaging applications in order to prevent product from being loaded into a bag that is not open.

Interface Port
Allows the bagger to communicate to external devices. When integrating the bagger, it can be set to either master or slave mode.

NiceLabel Designer Pro Label Software
While our label printer applicator works with various types of label software, we recommend and support NiceLabel Designer Pro.

Virtual Start-Up Support

On-Site Start-Up & Training
